The gear accuracy is 7 when the weight is 0.153kg, The main processing equipment of Parking Gea is mechanical press and NUMERICAL control lathe. The difference between numerical control lathe and ordinary locomotive processing parts lies in that numerical control lathe processes parts automatically according to the program, while ordinary machine tool needs to be operated by people.
Now, the purpose of processing different parts can be achieved as long as the program of controlling machine tool action is changed. Therefore, CNC machine tools are especially suitable for processing small batch and complex shape requirements of high precision parts.
CNC lathe also known as CNC lathe, that is, computer digital control lathe, is currently the largest domestic use, the most extensive coverage of a CNC machine tool, accounting for about 25% of the total number of CNC machine tools.
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |

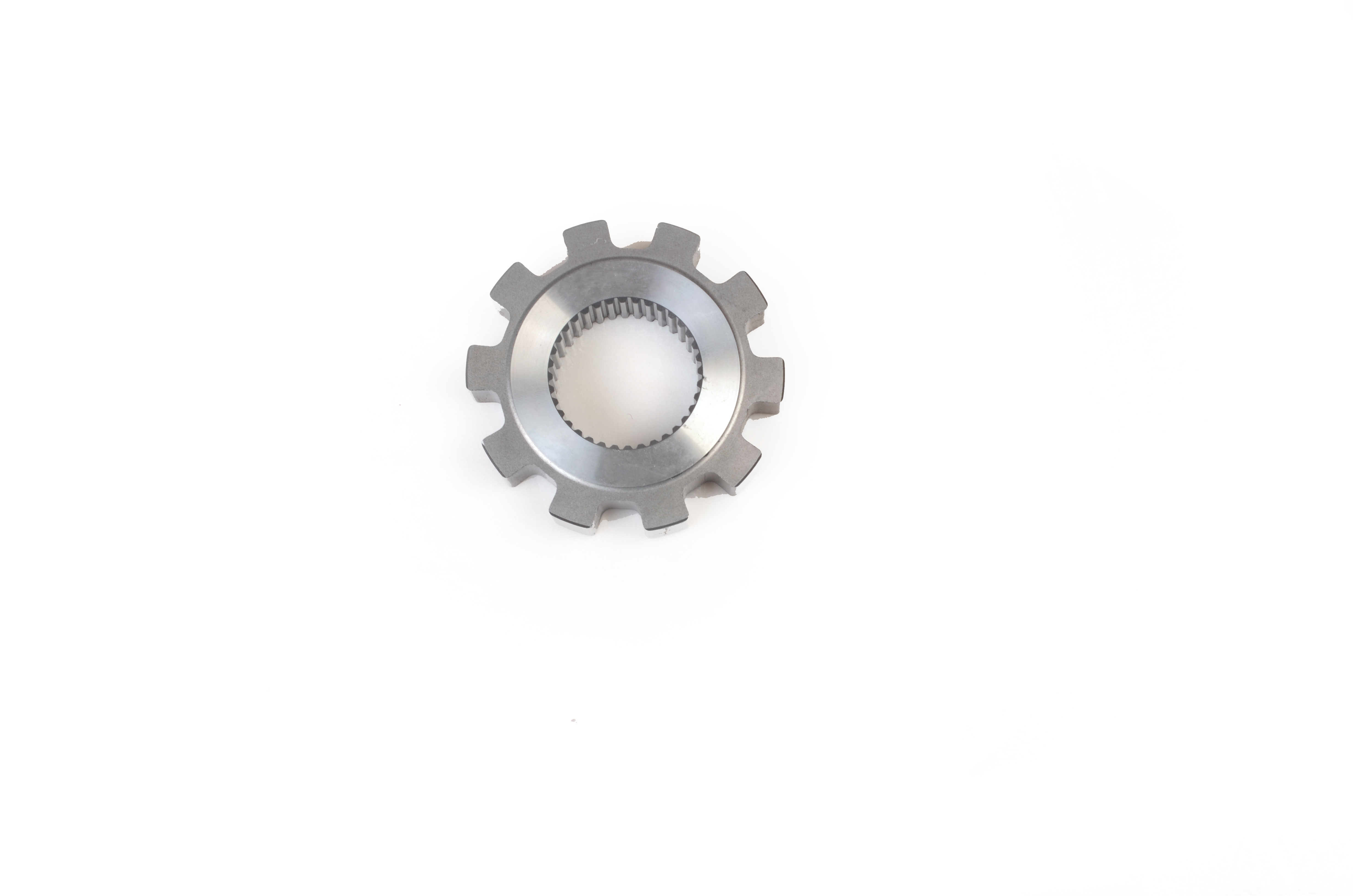

| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q: What are your company's main products?
A: Automotive precision forging products.
Q: Can you send me a sample?
A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.
Q: How to get the best price?
A: You can consult our commercial department for pricing.
