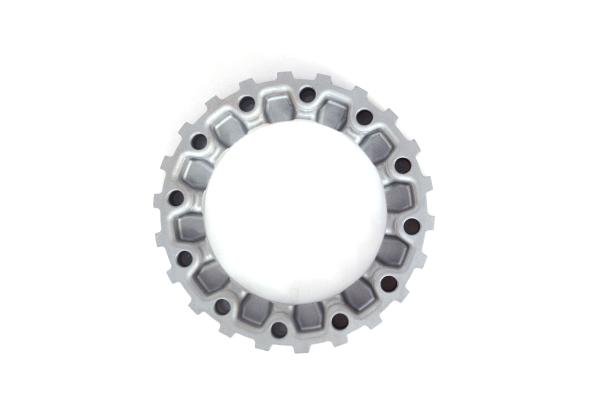

The gear accuracy is 8 when the weight is 0.173kg,The material selected for this product is 20CrMnTi, which is a kind of carburizing carbon steel with good performance and high hardenability. After carburizing and quenching, it has hard and wear-resistant surface and tough core, high low-temperature impact toughness, moderate weldability, and good machinability after normalizing.
It is used to manufacture the important parts such as gear, gear ring, gear shaft cross head which bear high speed, medium or heavy load, impact and friction with cross section <30mm.
Is a substitute steel for 18CrMnTi, widely used as carburized parts in automobiles. The tractor industry is used in cross sections below 30mm to withstand high speeds. Medium or heavy load and impact. Friction of important carburized parts, such as gears. Shaft. Gear ring. Gear shaft. The main shaft of the sliding bearing. Crosshead. Claw clutch. Worm etc.
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q: What are your company's main products?
A: Automotive precision forging products.
Q: Can you send me a sample?
A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.
Q: How to get the best price?
A: You can consult our commercial department for pricing.
