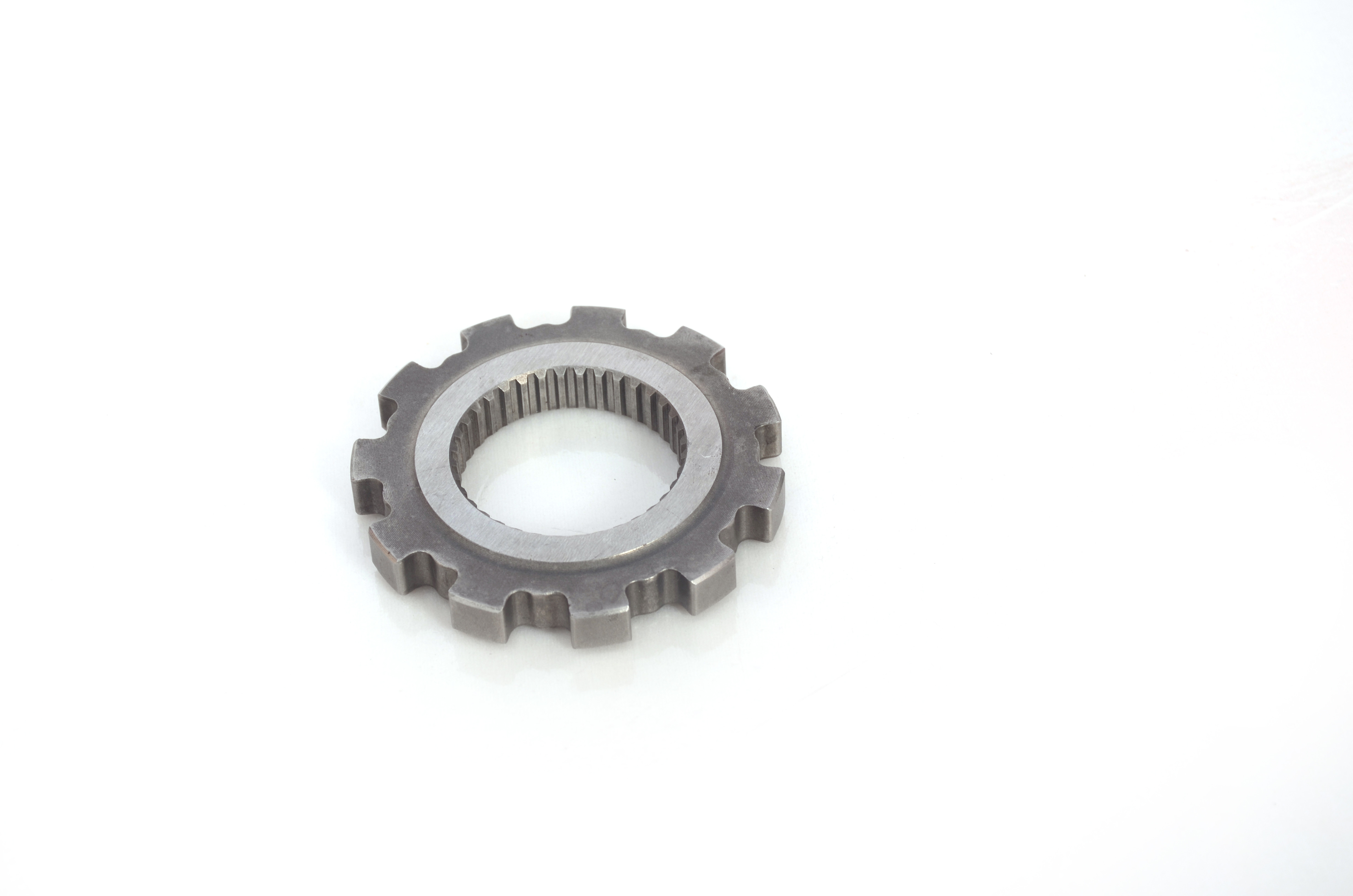

The gear accuracy is 8 when the weight is 0.184kg, The material chosen for this product is 20CrMnTi, which is a kind of carburized carbon steel. Carburized carbon steel is usually low carbon steel with carbon content of 0.17%-0.24%.
Size:
Ingot :9 "-62" square ingot, round ingot, octagonal ingot, semicircle ingot, 25-60T VC ingot; Electroslag ingot :5-15T round ingot and other more than 50 kinds;
Section: φ 40-130mm hot rolled round steel, 60-160mm hot rolled square steel;
Forging material: φ 70- φ 1000mm forging round steel, 70-880 forging square steel, width 300-850mm x 300-850mm x length 1000-8000mm module;
Mechanical properties:
Tensile strength σ B (MPa): ≥1080(110)
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q:What are your packing terms?
A: Generally speaking, we will pack properly according to your requirements.
Q:What are your terms of payment?
A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.
Q: What are your company's main products?
A: Automotive precision forging products.
Product Tags:
|
|

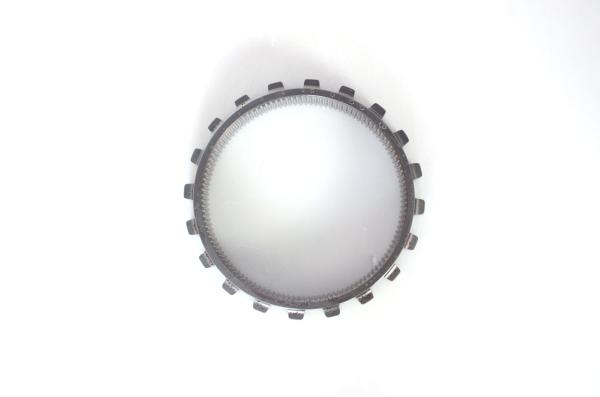

58HRC Hardness Parking Gear Involute Internal Spline 10 Tooth 0.184kg Images
|
