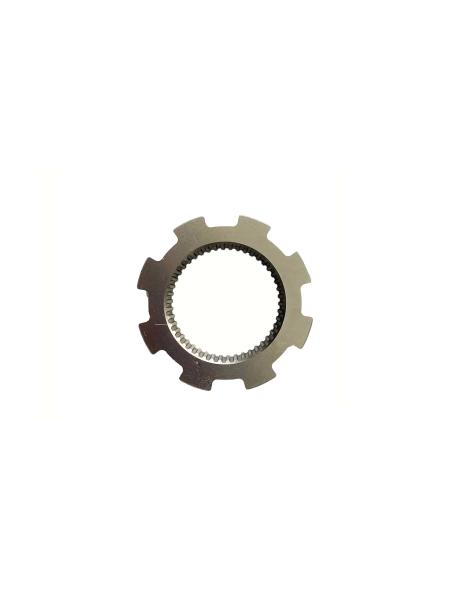

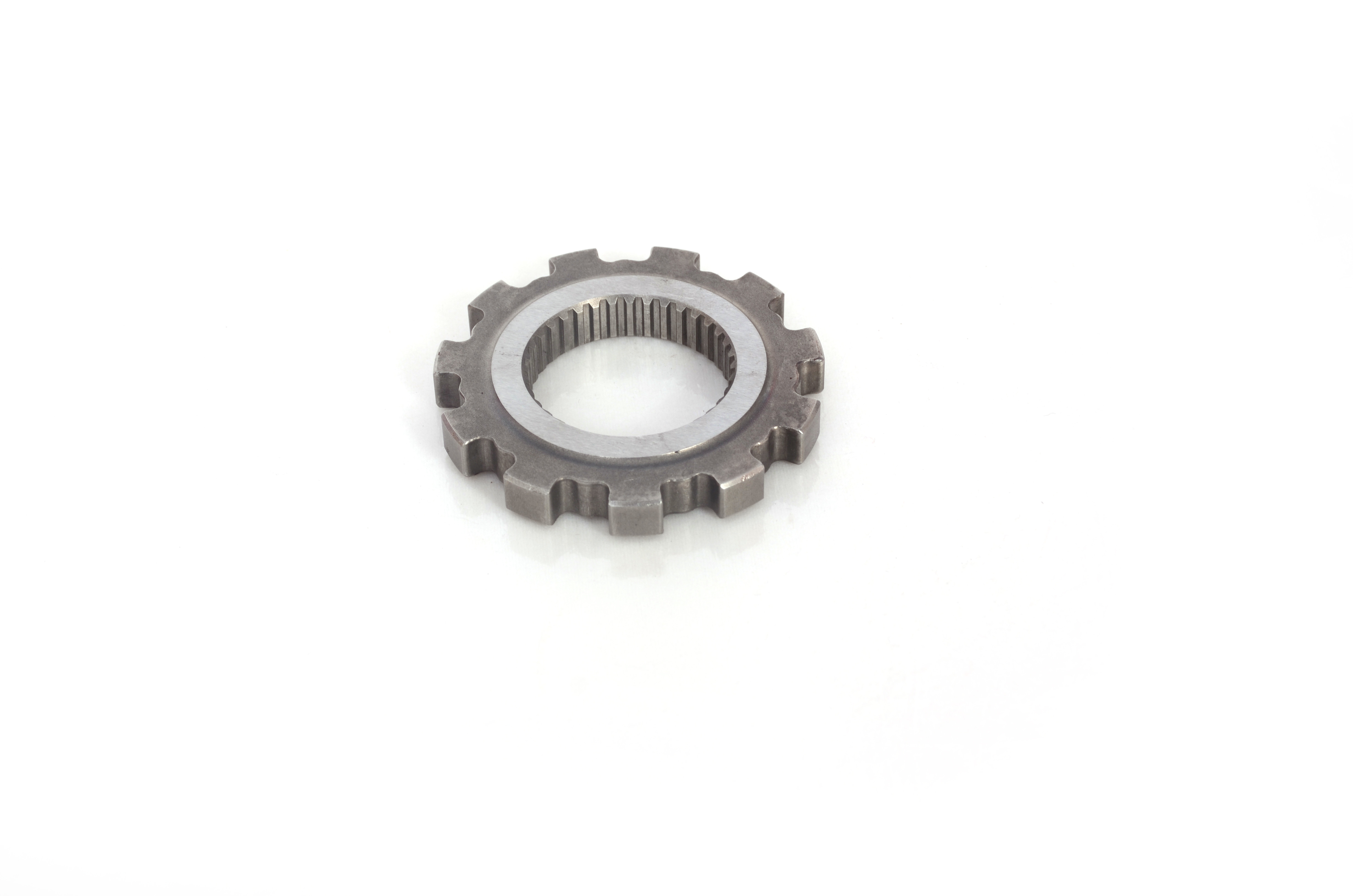

The gear accuracy of the parking gear is 10, low carbon alloy steel, This product is made of low carbon alloy steel. Generally, alloy steel is called alloy steel by adding other alloying elements in addition to iron and carbon. An iron carbon alloy formed by adding one or more alloying elements on the basis of ordinary carbon steel.
The properties of steel depend on the phase composition of steel, the composition and structure of the phase, the volume component of each phase in the steel and the relative distribution of each phase. Alloying elements act by influencing the above factors.
Change the temperature of phase transition point. In general, the expansion of γ phase (austenite) area of elements, such as manganese, nickel, carbon, nitrogen, copper, zinc, etc., the A3 point temperature reduced,A4 point temperature increased; On the contrary, the reduction of elements in the γ phase, such as zirconium, boron, silicon, phosphorus, titanium, vanadium, molybdenum, tungsten, niobium, etc., will increase the temperature of A3 point, A4 point temperature decreased.
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q: What are your company's main products?
A: Automotive precision forging products.
Q: Can you send me a sample?
A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.
Q: How to get the best price?
A: You can consult our commercial department for pricing.
