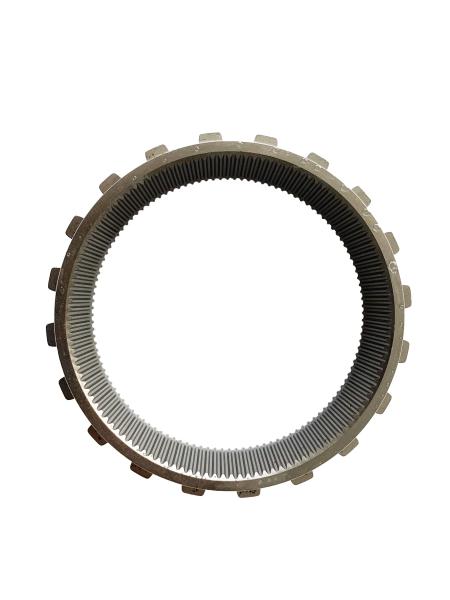

The parking tooth with module 8.1 has a width of 10, This product is made of low carbon alloy steel. Generally, alloy steel is called alloy steel by adding other alloying elements in addition to iron and carbon. An iron carbon alloy formed by adding one or more alloying elements on the basis of ordinary carbon steel.
Carbon (C) : with the increase of carbon content in steel, the yield point and tensile strength increase, but the plasticity and impact
When the carbon content exceeds 0.23%, the welding performance of steel deteriorates. therefore, the carbon content of low alloy structural steel used for welding is generally not more than 0.20%.
High carbon content will reduce the atmospheric corrosion resistance of steel, in the open yard of high carbon steel is easy to rust; In addition, carbon can increase the cold brittleness and age sensitivity of steel.
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q: What are your company's main products?
A: Automotive precision forging products.
Q: Can you send me a sample?
A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.
Q: How to get the best price?
A: You can consult our commercial department for pricing.
